Australian Assembled Masts

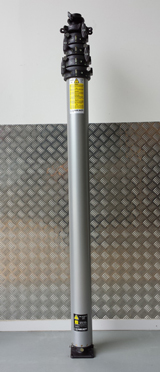

M Type Mast
Clark Masts MS range of masts offer a 4" base tube and a compact retracted to extended height ratio which results in strong 1.5" or 2" top section able to support headloads of between 10 to 20 kg dependant on required extended height. Available in locking clamp collar variant only.
Standard finish:
Base section: Clear anodised
Mast sections: Clear anodised
Mast collars: Black anodised
| MS series | Heights (metres) | Headload | ||
|---|---|---|---|---|
| Model | Extended | Retracted | kg | |
| 3 tube section masts - M-type 4.0" | ||||
| MS62-3C | 6.18 | 2.62 | 35 | |
| MS49-3C | 4.88 | 2.12 | 35 | |
| MS36-3C | 3.58 | 1.62 | 40 | |
| MS29-3C | 2.93 | 1.37 | 40 | |
| 4 tube section masts - M-type 4.0" | ||||
| MS114-4C | 11.37 | 3.68 | 20 | |
| MS80-4C | 7.97 | 2.68 | 25 | |
| MS63-4C | 6.27 | 2.18 | 25 | |
| MS46-4C | 4.57 | 1.68 | 30 | |
| MS37-4C | 3.72 | 1.43 | 30 | |
| 5 tube section masts - M-type 4.0" | ||||
| MS139-5C | 13.93 | 3.74 | 15 | |
| MS97-5C | 9.73 | 2.74 | 20 | |
| MS76-5C | 7.63 | 2.24 | 20 | |
| MS55-5C | 5.53 | 1.74 | 25 | |
| MS45-5C | 4.48 | 1.49 | 25 | |
| 6 tube section masts - M-type 4.0" | ||||
| MS115-6C | 11.46 | 2.80 | 12 | |
| MS90-6C | 8.96 | 2.30 | 15 | |
| MS65-6C | 6.46 | 1.80 | 15 | |
| MS52-6C | 5.21 | 1.55 | 15 | |
