Australian Assembled Masts

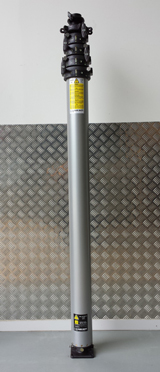

P Type Mast
The PS series mast range offers a 4.5" base tube, features heavy anodised aluminium alloy construction and keyed sections enabling the mast to be turned. The PS mast can be equipped with a fixed base for static air connection. Ideal for organisations involved in field strength measurement or radio reporting cars.
Standard finish:
Base section: Clear anodised
Mast sections: Clear anodised
Mast collars: Black anodised
| PS series | Heights (metres) | Headload | ||
|---|---|---|---|---|
| Model | Extended | Retracted | kg | |
| 3 tube section masts - P-type 4.5" | ||||
| PS63-3C | 6.27 | 2.65 | 50 | |
| PS50-3C | 4.97 | 2.15 | 50 | |
| PS37-3C | 3.67 | 1.65 | 55 | |
| PS30-3C | 3.02 | 1.40 | 55 | |
| 4 tube section masts - P-type 4.5" | ||||
| PS115-4C | 11.49 | 3.71 | 30 | |
| PS81-4C | 8.09 | 2.71 | 30 | |
| PS64-4C | 6.39 | 2.21 | 35 | |
| PS47-4C | 4.69 | 1.71 | 40 | |
| PS38-4C | 3.84 | 1.46 | 40 | |
| 5 tube section masts - P-type 4.5" | ||||
| PS141-5C | 14.08 | 3.77 | 20 | |
| PS99-5C | 9.88 | 2.77 | 25 | |
| PS78-5C | 7.78 | 2.27 | 25 | |
| PS57-5C | 5.68 | 1.77 | 30 | |
| PS46-5C | 4.63 | 1.52 | 30 | |
| 6 tube section masts - P-type 4.5" | ||||
| PS166-6C | 16.64 | 3.83 | 15 | |
| PS116-6C | 11.64 | 2.83 | 20 | |
| PS91-6C | 9.14 | 2.33 | 20 | |
| PS66-6C | 6.64 | 1.83 | 25 | |
| PS54-6C | 5.39 | 1.58 | 25 | |
| 7 tube section masts - P-type 4.5" | ||||
| PS134-7C | 13.37 | 2.88 | 12 | |
| PS105-7C | 10.47 | 2.38 | 15 | |
| PS76-7C | 7.57 | 1.88 | 15 | |
| PS61-7C | 6.12 | 1.63 | 15 | |
