European Assembled Masts
MT Masts
QUICK AND EASY TO EXTEND AND RETRACT

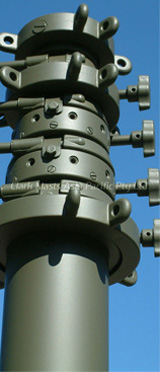

Clark Masts MT range of masts offer a 4" base tube and a compact retracted to extended height ration which results in strong 1.5" or 2" top section able to support headloads of between 10 to 20 kg dependant on required extended height. Available in locking clamp collar variant only.
| MT series | Heights (metres) | Headload | ||
|---|---|---|---|---|
| Model | Extended | Retracted | kg | |
| 5 tube section masts | ||||
| MT6-5-TC | 6.05 | 1.73 | 20.0 | |
| MT9-5-TC | 9.05 | 2.38 | 20.0 | |
| MT10-5-TC | 10.05 | 2.86 | 20.0 | |
| MT12-5-TC | 12.05 | 2.76 | 20.0 | |
| MT16-5-TC | 16.05 | 4.08 | 15.0 | |
| 6 tube section masts | ||||
| MT9-6-TC | 9.05 | 2.06 | 12.0 | |
| MT10-6-TC | 10.05 | 2.26 | 12.0 | |
| MT12-6-TC | 12.05 | 2.76 | 10.0 | |
| MT16-6-TC | 16.05 | 3.56 | 10.0 | |
