European Assembled Masts

ZT Masts

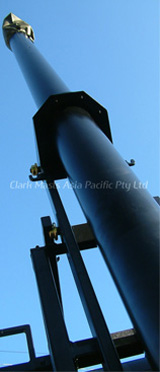

The ZT mast range is based on a lower tube of 7.0" (177.8mm) diameter
A range of accessories to suit the ZT mast range is available.
zT seriesHeights (metres)Headload
Model Extended Retracted kg

6 tube section masts
ZT100-6-TC 10.06 2.46 110.0
ZT120-6-TC 12.06 2.96 100.0
ZT150-6-TC 15.06 3.56 85.0
ZT180-6-TC 18.06 3.96 60.0

7 tube section masts
ZT100-7-TC 10.06 2.46 100.0
ZT120-7-TC 12.06 2.62 80.0
ZT150-7-TC 15.06 3.26 70.0
ZT180-7-TC 18.06 4.16 60.0

8 tube section masts
ZT120-8-TC 12.06 2.51 70.0
ZT150-8-TC 15.06 3.40 65.0
ZT180-8-TC 18.06 3.60 50.0
ZT210-8-TC 21.06 3.76 50.0
