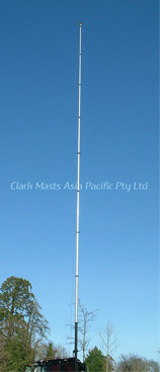

WT Mast
THE HEAVY-WEIGHT MAST REACHING 30 METRES
WT masts have greater strength and can reach greater heights by virtue of their 6" diameter base tube. With a maximum of 30 metres, most WT series masts in mobile roles have to be transported in the horizontal position. Various roof trolley systems are available.
| WT series | Heights (metres) | Headload | ||
|---|---|---|---|---|
| Model | Extended | Retracted | kg | |
| 4 tube section masts | ||||
| WT14-4-TC | 3.47 | 1.42 | 120.0 | |
| WT60-4-TC | 6.05 | 2.27 | 110.0 | |
| WT80-4-TC | 8.05 | 2.92 | 100.0 | |
| WT100-4-TC | 10.05 | 3.32 | 90.0 | |
| 5 tube section masts | ||||
| WT21-5-TC | 5.77 | 1.76 | 85.0 | |
| WT15-5-TC | 8.07 | 2.66 | 100.0 | |
| WT7-5-TC | 12.07 | 3.53 | 90.0 | |
| WT150-5-TC | 15.05 | 4.20 | 70.0 | |
| 6 tube section masts | ||||
| WT50-6-TC | 5.05 | 1.66 | 65.0 | |
| WT60-6-TC | 6.05 | 1.73 | 65.0 | |
| WT75-6-TC | 7.55 | 1.96 | 60.0 | |
| WT90-6-TC | 9.05 | 2.26 | 60.0 | |
| WT100-6-TC | 10.05 | 2.46 | 60.0 | |
| WT120-6-TC | 12.05 | 2.86 | 60.0 | |
| WT5-6-TC | 15.37 | 3.82 | 55.0 | |
| WT1-6-TC | 18.37 | 4.13 | 55.0 | |
| WT10-6-TC | 21.47 | 4.73 | 45.0 | |
| 7 tube section masts | ||||
| WT65-7-TC | 6.55 | 1.98 | 50.0 | |
| WT90-7-TC | 9.05 | 2.28 | 50.0 | |
| WT120-7-TC | 12.05 | 2.64 | 45.0 | |
| WT150-7-TC | 15.05 | 3.28 | 45.0 | |
| WT180-7-TC | 18.05 | 4.18 | 40.0 | |
| WT180-7-TC | 20.07 | 3.72 | 40.0 | |
| 8 tube section masts | ||||
| WT75-8-TC | 7.55 | 2.10 | 35.0 | |
| WT11-8-TC | 9.27 | 2.34 | 35.0 | |
| WT12-8-TC | 12.07 | 2.51 | 35.0 | |
| WT150-7-TC | 15.05 | 3.40 | 30.0 | |
| WT180-7-TC | 18.05 | 3.60 | 30.0 | |
| WT9-7-TC | 20.07 | 3.72 | 30.0 | |
| 9 tube section masts | ||||
| WT90-9-TC | 9.05 | 2.12 | 20.0 | |
| WT120-9-TC | 12.05 | 2.32 | 20.0 | |
| WT16-9-TC | 13.87 | 2.59 | 15.0 | |
| WT180-9-TC | 18.05 | 3.22 | 15.0 | |
| WT26-9-TC | 26.07 | 4.33 | 12.0 | |
| WT8-9-TC | 30.57 | 5.17 | 12.0 | |
